本文整理了美标Class系列 ANSI B16.5钛法兰(WN,SO,BL,LWN)带颈对焊法兰、带颈平焊法兰、盲板、长高颈法兰近似重量查询表。
- 规格：DN15~DN600，NPS1"~24" Class150#，Class300#，Class600#，Class900#，Class1500#，Class2500#
- 密度：钛材密度按4.51计算，若要计算其他材质法兰重量，根据钛法兰重量除以4.51再乘以相应材质密度则可得到近似重量
- 法兰标准：ANSI B16.5 ASME B16.5

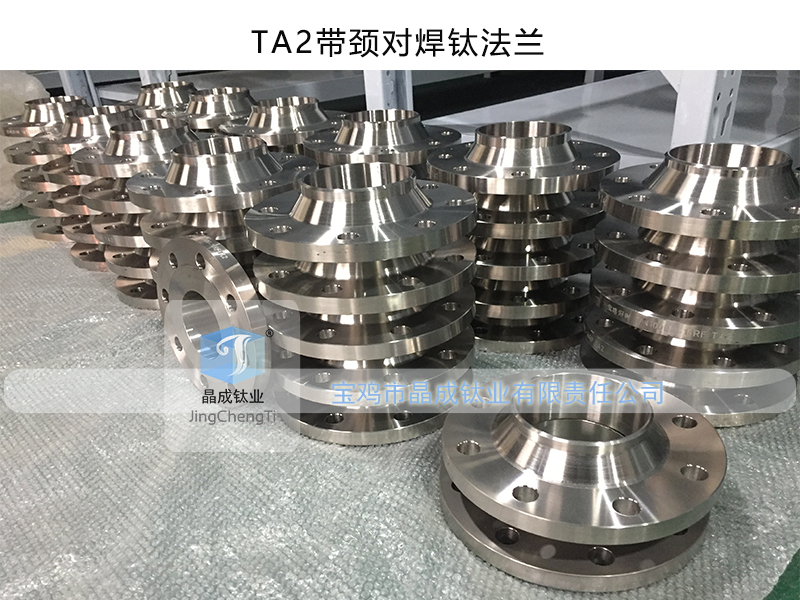

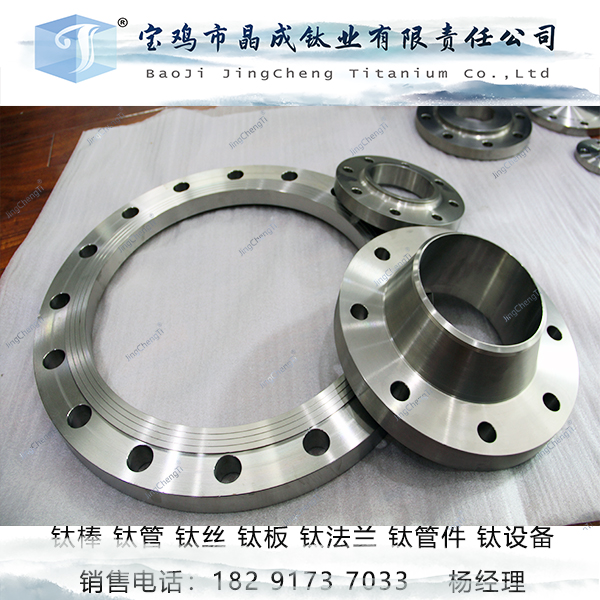

WN钛法兰(带颈对焊法兰)近似重量表：密度4.51g/cm3，尺寸标准ANSI B16.5/ASME B16.5
| NPS | Class150 | Class300 | Class600 | Class900 | Class1500 | Class2500 |
|
1/2" |
0.523kg |
0.523kg |
0.781kg | 1.827kg |
1.827kg |
2.086kg |
|
3/4" |
0.523kg | 0.781kg | 0.913kg | 1.827kg | 1.827kg | 2.350kg |
|
1" |
0.655kg | 1.046kg | 1.046kg | 2.218kg | 2.218kg | 3.390kg |
|
1-1/4" |
0.655kg | 1.304kg | 1.436kg | 2.608kg | 2.608kg | 5.217kg |
|
1-1/2" |
1.040kg | 1.827kg | 2.086kg | 3.654kg | 3.654kg | 7.302kg |
|
2" |
1.563kg | 2.086kg | 2.608kg | 6.262kg | 6.262kg | 10.956kg |
|
2-1/2" |
2.608kg | 3.131kg | 3.654kg | 9.388kg | 9.388kg | 13.564kg |
|
3" |
2.999kg | 4.694kg | 4.694kg | 7.566kg | 12.519kg | 24.521kg |
|
4" |
4.303kg | 6.921kg | 9.652kg | 13.300kg | 18.000kg | 38.079kg |
|
5" |
5.475kg | 9.388kg | 17.736kg | 22.429kg | 34.431kg | 63.646kg |
|
6" |
6.779kg | 11.737kg | 19.040kg | 28.692kg | 42.779kg | 98.594kg |
|
8" |
10.956kg | 18.000kg | 29.214kg | 48.777kg | 71.206kg | 150.238kg |
|
10" |
14.087kg | 26.083kg | 49.300kg | 69.902kg | 118.421kg | 278.569kg |
|
12" |
22.952kg | 37.039kg | 58.946kg | 97.031kg | 179.975kg | 419.419kg |
|
14" |
29.737kg | 53.729kg | 90.510kg | 146.589kg | 233.543kg | / |
|
16" |
37.039kg | 125.458kg | 125.458kg | 178.671kg | 301.624kg | / |
|
18" |
43.032kg | 79.813kg | 144.762kg | 241.012kg | 394.812kg | / |
|
20" |
51.385kg | 96.250kg | 179.975kg | 303.612kg | 489.838kg | / |
|
24" |
69.902kg | 135.375kg | 254.835kg | 549.577kg | 785.257kg | / |

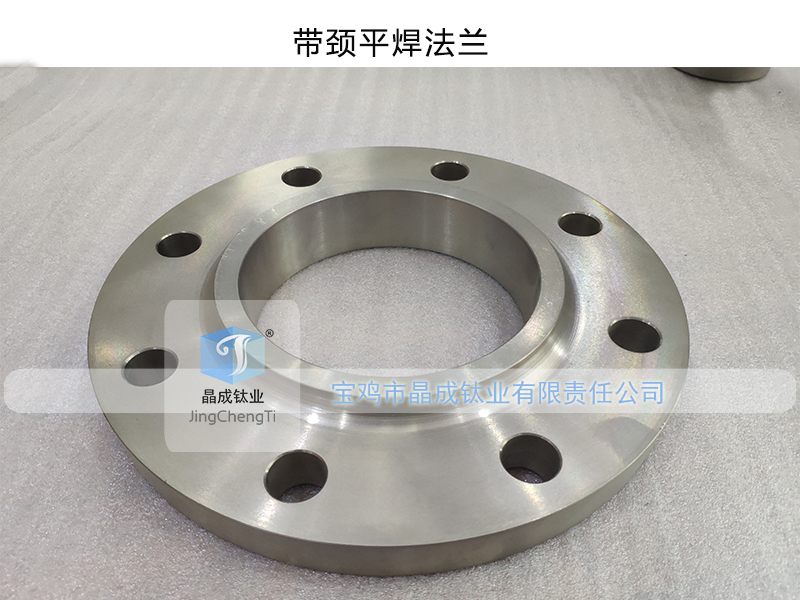

SO钛法兰（带颈平焊法兰）密度按4.51g/cm3，尺寸标准ANSI B16.5/ASME B16.5
| NPS | Class150 | Class300 | Class600 | Class900 | Class1500 | Class2500 |
|
1/2" |
0.259kg |
0.391kg |
523kg | 1.563kg |
1.563kg |
/ |
|
3/4" |
0.391kg | 0.655kg | 0.781kg | 1.563kg | 1.563kg | / |
|
1" |
0.523kg | 0.781kg | 0.913kg | 1.959kg | 1.959kg | / |
|
1-1/4" |
0.655kg | 1.172kg | 1.172kg | 2.608kg | 2.608kg | / |
|
1-1/2" |
0.781kg | 1.695kg | 1.695kg | 3.654kg | 3.654kg | / |
|
2" |
1.252kg | 1.827kg | 2.086kg | 5.739kg | 5.739kg | / |
|
2-1/2" |
1.982kg | 2.608kg | 3.131kg | 9.388kg | 9.388kg | / |
|
3" |
2.304kg | 3.390kg | 3.912kg | 8.084kg | / | / |
|
4" |
3.235kg | 6.130kg | 8.606kg | 13.823kg | / | / |
|
5" |
3.872kg | 7.566kg | 16.431kg | 21.648kg | / | / |
|
6" |
4.539kg | 9.388kg | 20.867kg | 28.169kg | / | / |
|
8" |
7.411kg | 14.604kg | 25.302kg | 44.864kg | / | / |
|
10" |
10.112kg | 20.085kg | 46.169kg | 63.904kg | / | / |
|
12" |
15.909kg | 29.473kg | 56.079kg | 85.029kg | / | / |
|
14" |
21.648kg | 41.475kg | 67.558kg | 99.117kg | / | / |
|
16" |
27.646kg | 54.775kg | 95.463kg | 119.725kg | / | / |
|
18" |
28.433kg |
65.990kg |
124.154kg | 168.760kg | / | / |
|
20" |
38.602kg |
80.077kg |
159.631kg | 206.581kg | / | / |
|
24" |
53.212kg | 127.808kg | 228.488kg | 386.033kg | / | / |

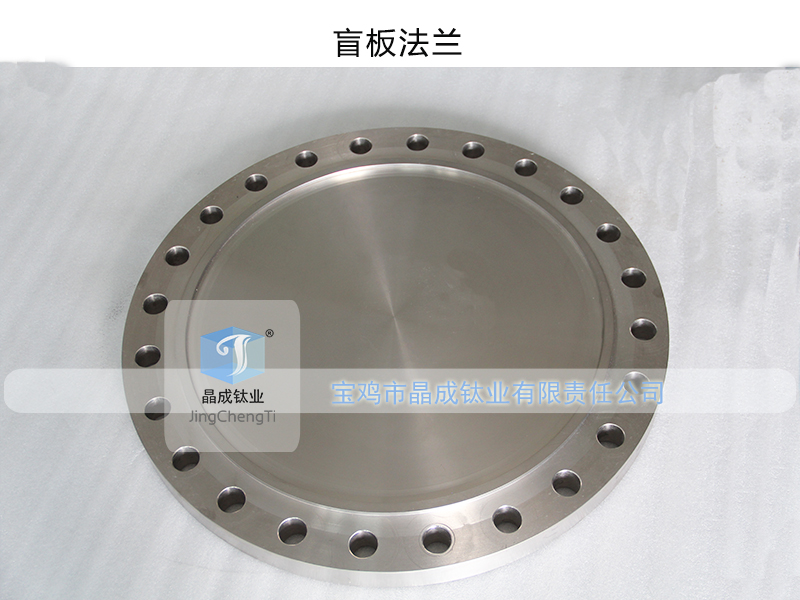

BL钛法兰（钛盲板）密度按4.51g/cm3，尺寸标准ANSI B16.5/ASME B16.5
| NPS | Class150 | Class300 | Class600 | Class900 | Class1500 | Class2500 |
|
1/2" |
0.523kg | 0.523kg | 0.523kg | 1.046kg | 1.046kg | 1.827kg |
|
3/4" |
0.523kg | 0.781kg | 0.781kg | 1.563kg | 1.563kg | 2.608kg |
|
1" |
0.523kg | 1.046kg | 1.046kg | 2.350kg | 2.350kg | 3.131kg |
|
1-1/4" |
0.781kg | 1.563kg | 1.563kg | 2.608kg | 2.608kg | 4.694kg |
|
1-1/2" |
0.781kg | 1.827kg | 2.086kg | 3.654kg | 3.654kg | 6.521kg |
|
2" |
1.046kg | 2.086kg | 2.608kg | 6.521kg | 6.521kg | 10.175kg |
|
2-1/2" |
1.827kg | 3.131kg | 3.912kg | 9.129kg | 9.129kg | 14.604 |
|
3" |
2.350kg | 4.171kg | 5.217kg | 8.348kg | 12.519kg | 22.429kg |
|
4" |
4.435kg | 7.302kg | 10.692kg | 14.087kg | 19.040kg | 34.690kg |
|
5" |
5.217kg | 9.652kg | 17.736kg | 22.694kg | 37.039kg | 58.165kg |
|
6" |
7.044kg | 12.519kg | 22.429kg | 29.473kg | 41.475kg | 89.987kg |
|
8" |
12.260kg | 20.608kg | 36.258kg | 51.385kg | 78.773kg | 139.023kg |
|
10" |
17.477kg | 31.823kg | 60.250kg | 75.642kg | 132.244kg | 267.354kg |
|
12" |
25.854kg | 47.731kg | 76.946kg | 107.723kg | 202.146kg | 370.372kg |
|
14" |
36.258kg | 62.858kg | 85.552kg | 128.854kg | 242.851kg | / |
|
16" |
48.777kg | 82.162kg | 137.460kg | 161.458kg | 320.124kg | / |
|
18" |
56.602kg | 107.987kg | 173.454kg | 229.533kg | 436.982kg | / |
|
20" |
73.838kg | 134.329kg | 223.012kg | 288.743kg | 555.333kg | / |
|
24" |
108.246kg | 208.666kg | 306.479kg | 547.491kg | 896.255kg | / |
